What is a Dieline? The Blueprint of Box Packaging

Dielines are the final roadmap towards winning custom packaging. They trace all cut lines and print lines on a planar template. ColorWing Packaging brings dielines to life through die cutting. This guide goes into great depth on creating dieline anatomy and the power to make custom folding cartons, display packaging, and rigid setup boxes. You can pick a trustworthy packaging company to improve your brand's shelf positioning in the country. From the dielines prepared on software to giving it a real impact through the die-cutting process, packaging evolves behind it.

A dieline showcases the art of your brand; it shows what your packaging's final look looks like, it's a die-line that decides how your packaging looks.

Dieline Defined To The Core Design of Packaging

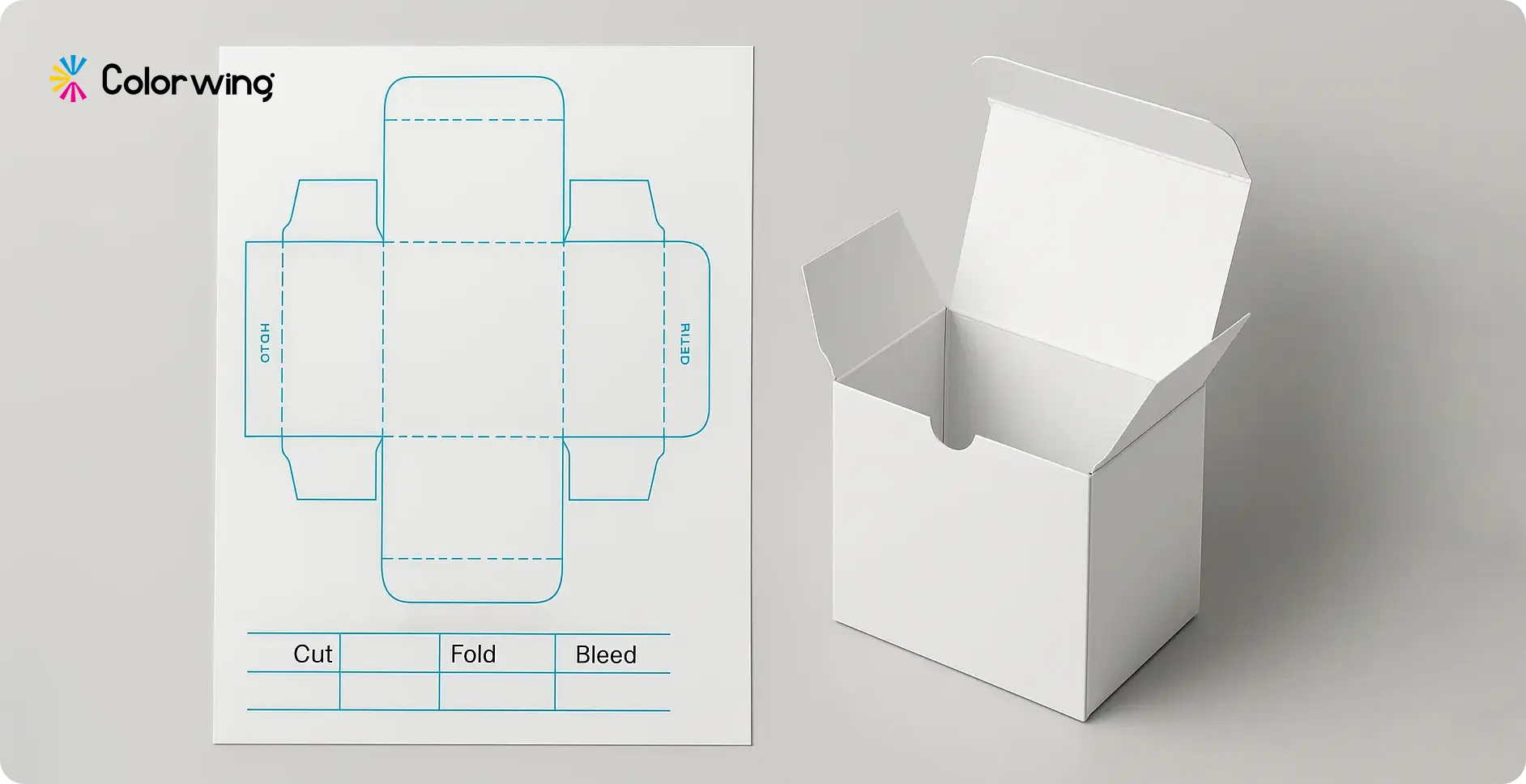

A dieline takes your 3D box and forms a 2D blueprint. It measures cut lines, crease folds and glue tabs precisely. Artists lay down images, perfect match makes perfect. Disaster has no guidelines. This causes folds to misalign and collapse of the box without dielines. ColorWing dielines ensure custom printed boxes come out perfect each run in the showroom. The value of a blueprint of skyscrapers is structural brilliance that is simple and thoughtful

Cut Lines: Blade Cuts Accuracy

Die cutter blades are trimmed with solid black lines. These determine the final box sizes after cutting sharply. Product tight, no waste air volume lines hug the product, cut cartons with custom folding cutters, which drives up the freight dead cost. ColorWing embraces 0.5mm accuracy million impressions. Wrong cuts cause up to 10% returns; bad math we don’t want. Production is flawless through cut mastery.

Edge Protection: Smart Bleed Lines

Green solid lines are 3mm further than the cuts account for trimming tiny. Artwork fills eliminate white edges and ugly print failures. The zone of text always stays safe at the logos text. Foil stamps are wrapped to the corner seamlessly, and this is achieved by using rigid setup boxes that bleed. ColorWing auto checks bleed compliance waste free tight. Bleed omits reprints thousands of dollars with killer margins that go away fast.

Fold Lines: Clean Crease Engineering

Red solid lines represent material thin groove folds, sharp, non-breaking fiber tears. Logos front face shelf eye level impulse gold is displayed in packaging folds. The rotary creasers are perfectly compatible with the thickness of the board 250gsm to 450gsm. Deep marks make the white cracks in cosmetics boxes flawless. Folds or Weak folds

Amateur sales plummet, and established retailing rules.

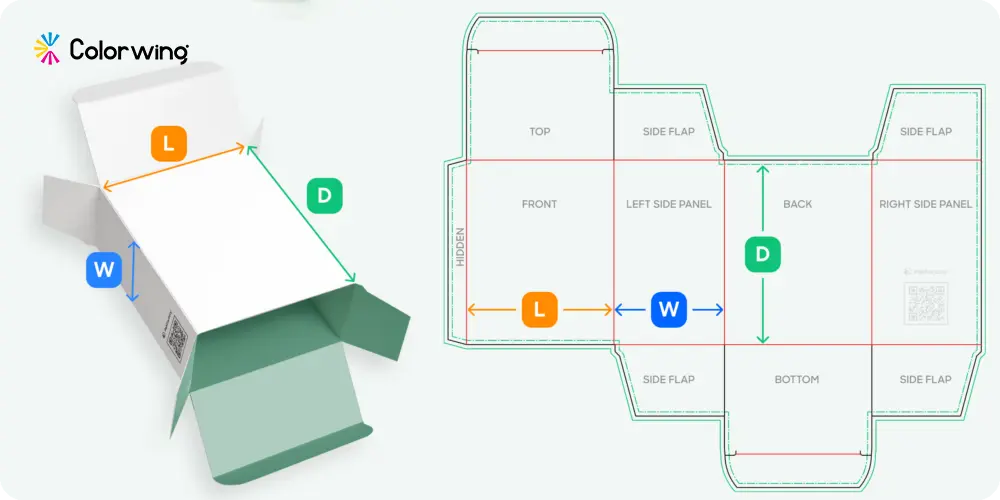

Safety Lines: Content Protection Guaranteed

Critical elements, logos, text, and barcodes are kept at the center with a dotted green margin. Trim passes 2mm, no waste like water. QR codes that can be scanned after being handled by crude hands are stored in custom-printed boxes in safety zones. ColorWing maintains 5mm of safe all client files automatically. Text bleed cut off kills instructions is a bad customer rage explosion. Trust reorder volume is confidently constructed.

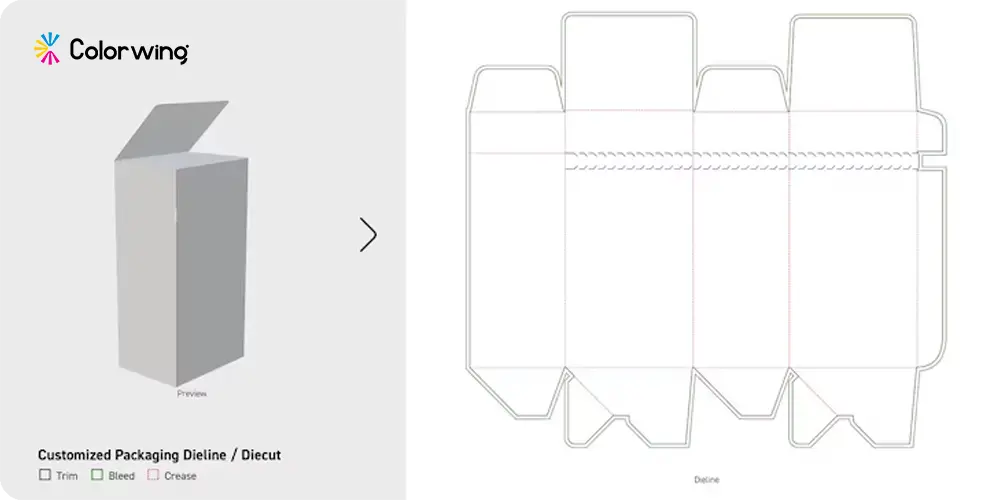

Perforation Lines: Tear Control Genius

Easy-open tear strips are easy to open with black dashes that push tabs smoothly. Bridges have a 0.3mm powerful shield convey passage and a scissor remove. Theater unboxing viral for brand’s favorite designs turn out to be beneficial :perforated boxes can display the inside contents. Bridge perfect tears are cut in the ratio of ColorWing laser rotary, 1:3 cut occurrences do not stray. Bakery breaths breathe fresh flower boxes increase vase days smart functionality floral beauty balanced.

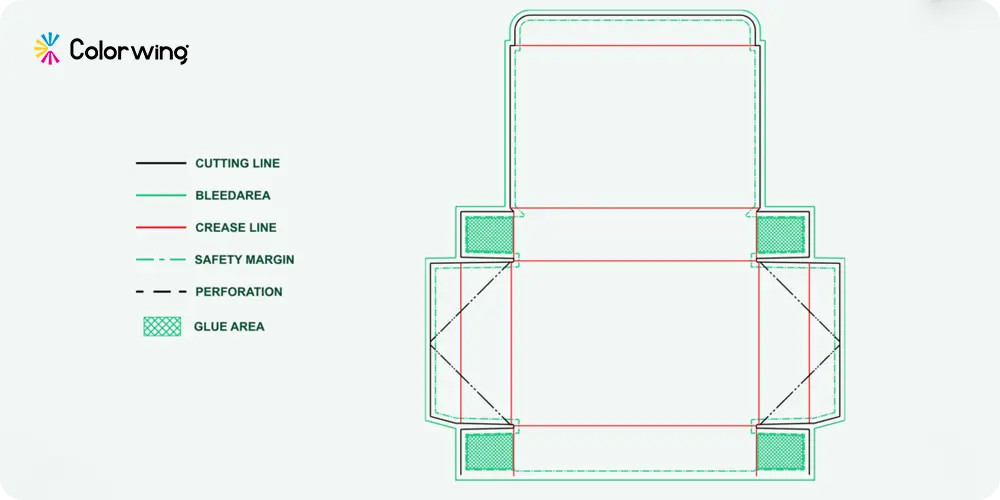

Glue Tabs: Assembly Lock Strong

Tabs that are green-hatched are accurate in adhesive areas. Chipboard corrugate permanent no peel open - hot melt EVA grips. Reinforced corners with stress points in custom folding cartons are glued using tabs. ColorWing inline gluing stations set weak pressure temp gaps precisely to zero. Stale glue bottoms slip, drops insurance claims, hell, if its not sturdy insurance claims gone bad. Tab perfection joins millions of flawless ones.

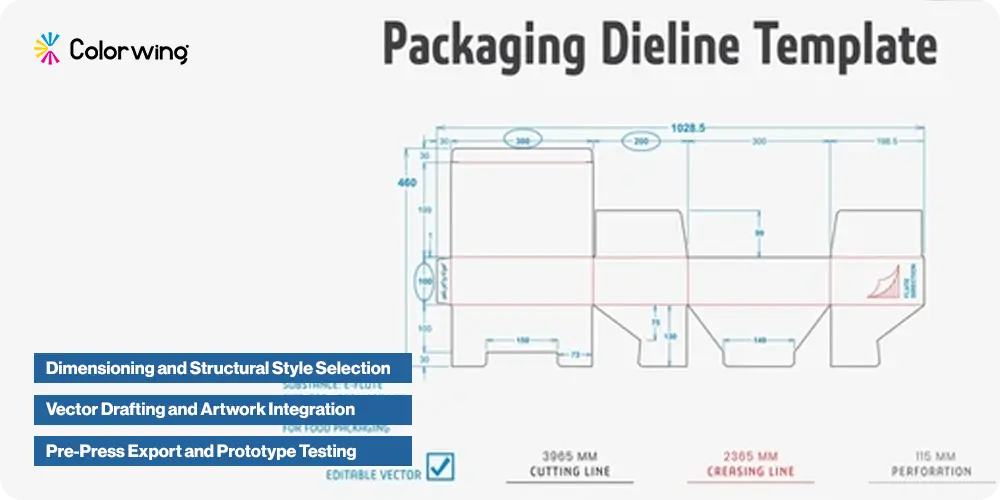

Production of Dielines Step by Step Pro

Measure the dimensions of products three times. Style rigid setup boxes. Rigid setup boxes that are used as mailer boxes, drawer boxes work first.

The editing tool ArtiosCAD is a scalable structural dieline vector. Import Illustrator position artwork bleed safe fold with seamlessness. Export PDF CMYK layers are split prepress on the fly. Test fold Prototype laser cut test fold real board feedback loop tight. Die cut run one million units economy can not be beat.

1) Dimensioning and Structural Style Selection

The foundation of a flawless box starts with the Triple-Measure Rule. We measure the product’s height, width, and depth three times to account for the smallest variances, ensuring a secure fit that eliminates the need for excess internal void-fill. Once dimensions are locked, we select the structural style that best serves the brand’s purpose.

Whether it is a rigid setup box for a luxury feel, a durable mailer box for the shipping journey, or a sophisticated drawer box for an unboxing experience, the style must work in harmony with the product's weight and fragility. Choosing the right style first prevents structural collapse and ensures the dieline is optimized for the specific board grade being used.

2) Vector Drafting and Artwork Integration

Once the structure is defined, we move into the digital drafting phase. Using ArtiosCAD, the packaging designers create a scalable structural vector that serves as the precise "skeleton" of the package. This file is then integrated with Adobe Illustrator, where designers position the brand artwork.

During this phase, we meticulously align every graphic with the bleed and safety zones to ensure no logos are lost during the trim. This seamless overlap between structural engineering and graphic design ensures that every fold line and glue tab is accounted for before a single drop of ink hits the board. This digital "pre-flight" is what prevents million-unit runs from having a single alignment error.

3) Pre-Press Export and Prototype Testing

It is the process of splitting CMYK layers, exporting PDFs, and the 48-hour laser-cut feedback loop.CMYK layers of artwork isolate foil varnish that is intended to be applied precisely. Dielines of custom printed boxes are used in marking varnish, flood panels, matte and gloss pop logos, that are crisp and sharp.

Modern Dielines run on Software Tools

ArtiosCAD is the 3D genius of complex structures simulation and material. Adobe Illustrator is an easy-to-work-with cartoon art. The Studio incorporated a print die cut workflow chain with zero errors. Free templates begin with custom printed boxes, dielines instruction-free steep. AI PDFs are a perfect fit in ensuring scalability print.

Frequent Dieline Error Prevention

Missing white edge bleed form is embarrassing customer repudiation high. Too close to the text raises illegible instructions. Wrong creases Fold lines are cheap sales tank fast, crack premium boxes. Misaligned assembly of glue tabs cost a fortune of thousands of dollars. Our free dieline audits prevent ten percent of pre-press savings in a guaranteed way.

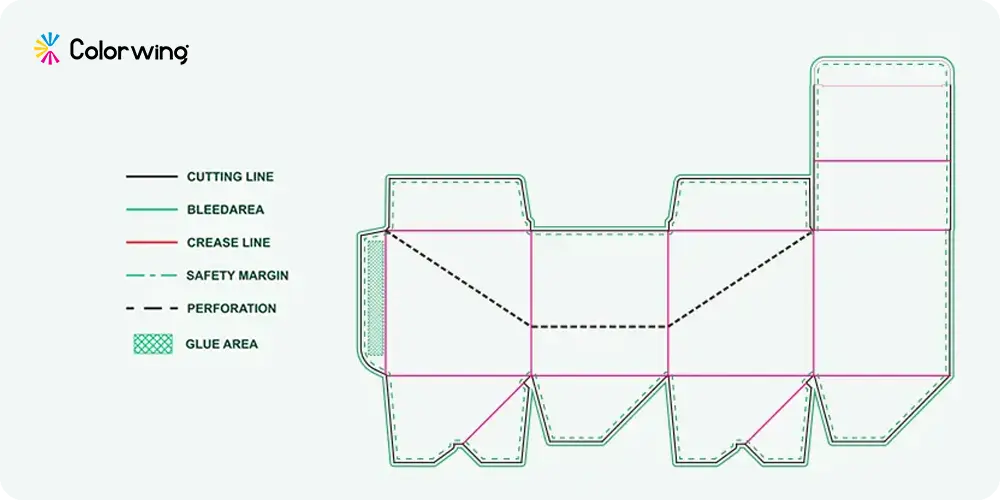

Dieline Applications Box Styles Mastered

Mirroring Mailer boxes' dielines saves twenty percent of lean stack high pallets freight. Hard-pack boxes swivel scores magnetic closures, luxury specific. Perforation roofs on gable boxes are tear-clean, bakery, floral, breathable, and elegant. The perforation takes place elegantly on custom bakery boxes as well. Slide box draws a luxury cosmetics unboxing theater viral. One unit versatile retail gold Hanger tab boxes, perforated tabs, pegboard display one unit versatile retail gold. ColorWing templates all the styles download instant pro results tight.

ColorWing has the inline printing die cut register 0.2mm flawless colors folds smoothly. UV finishes prevent fingerprints, classy limitless grab, and counter pro. Print dieline sync justifies premium price commodity clear

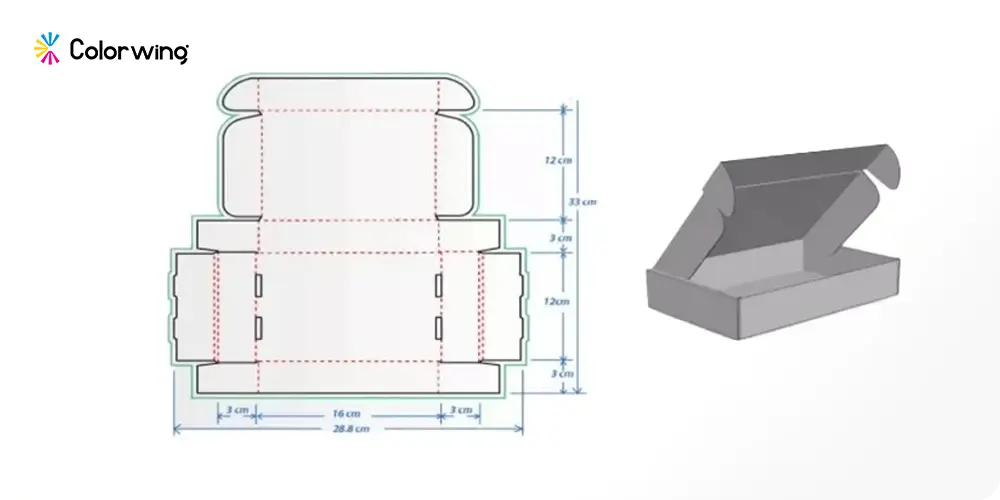

Dieline Real World Prototyping

The prototypes using laser cutting can be folded with a real board and test-fitted quickly. ColorWing's 48-hour prototyping feedback tightens the ship nationwide. Production is done after one proof perfect and in steel rule dies. Bulk run launches zero margins peak power. The smart errors of a thousand folds are revealed in the prototype investment are paid in advance.

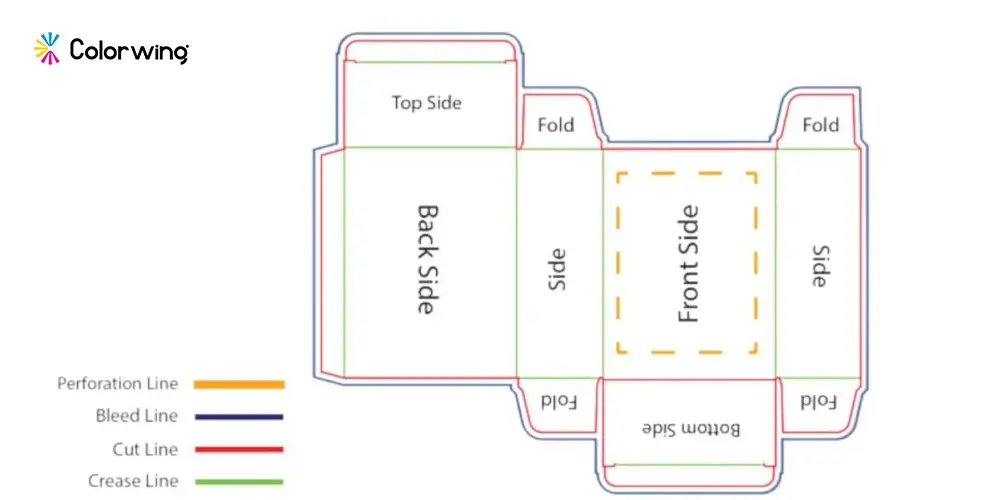

Green Sustainability Dieline Optimization

Dieline nesting packs reduce inbound freight emissions by a third. Less board-verified content recycled twenty-five percent of the content.

Tabs eco adhesive, low VOC safe, minimize glue tabs on custom folding cartons dielines. Boards that have certified ColorWing have FSC-certified materials which overseas dielines automatically win bids that are genuine. Million-unit scale: Sustainable designs doubles profit, planet wins-win.

Scale Power Production Dieline Unleashed

ColorWing, we can make rigid setup boxes per week, dielines, perfect zero waste, and zero rework. Dies last million reground inline economy tight. Display patterns, Display packaging perforation patterns, proven high speed 500m min. Shipping flat pallets throughout the country was twenty percent freight leaner and smart and massive. Dieline investment decreases unit costs by a penny.

Extend Packaging Dieline Precision Today

Dielines blueprint custom folding cartons success, ColorWing engineering flawless. Rigid setup boxes cut, fold, print, and glue harmony absolute. Display packaging perforation, tear elegance, and unboxing viral gold. Partner ColorWing dieline mastery and all types of boxes printed from concept to reality. Custom printed boxes ship shelf-ready margins, stack nationwide, confident wins, tight math proven impeccable.

From crafting the dieline from scratch, there has to be careful planning. A creative approach can make it ideal for the production process. From precise cut and fold lines, a well-thought-out design has bleed areas and safety margins. Each aspect of the dieline plays a pivotal role in the final product. Ensure that your packaging not only looks good but also stays functional to perform well for delighting customers.

ColorWing Dieline Services Total Solution

ColorWing free dieline templates download custom printed boxes, start instant pro. Expert audits catch errors, save ten percent of production costs guaranteed. ArtiosCAD builds complex drawer boxes, magnetic closure boxes, and structural genius. Inline print die glue assembly, zero hand touch quality, absolute. Nationwide ship prototypes, bulk flawless margins, peak execution perfect. With ColorWing as the top-tier packaging partner, we will help you out from die-lining to Die-Cutting to delivery to your door-step. We've got the right solutions.

Frequently Asked Questions:

How does a precise dieline reduce my total packaging costs?

An optimized dieline allows us to fit more boxes per sheet. This strategic nesting reduces raw material waste by twenty percent today. Smart engineering helps you save thousands on every large bulk order. Lower material usage also decreases your total shipping and freight costs

Why do my previous boxes have white cracks on the folds?

Visible cracks happen when the paperboard fibers break during high-speed folding. We solve this by using specialized creasing rules on our dielines. Choosing the correct material weight is essential for a luxury look. Adding a soft-touch or matte lamination also prevents these ugly cracks. High-quality finishes ensure your brand stays pristine on the retail shelf. Your customers will value the clean and professional look of excellence.

Can you create a custom box size for my unique product?

ColorWing provides custom structural dielines for every single product shape today. We measure your item to ensure a perfect and secure fit. Custom sizing prevents your products from moving around during heavy transit. This reduces the need for expensive and bulky internal bubble wrap. Our engineering team builds the blueprint to match your exact vision. Get a tailored solution that reflects the quality of your brand.

How do I know my logo will be centered correctly?

We provide a 3D digital proof based on the master dieline. This allows you to visualize the final box before mass production. Our pre-press team audits every file to ensure perfect logo alignment. We maintain a strict safety margin to protect your branding assets. This process eliminates the risk of your text being cut off. You can approve the design with total confidence in the results.

What happens if a packaging dieline is incorrect?

An incorrect dieline causes misaligned folds and potential box structural collapse. It leads to expensive reprints and delays in your product launch. Your branding and logos might be cut off during the trim. ColorWing performs a free technical audit to catch these errors early. Protect your investment by starting with a professionally engineered dieline template.
